Single Cylinder Concrete Hydraulic Shear
Category:
Whatsapp:
E-mail:
Product Catalogue
DownloadDescriptions
-
1. High-Efficiency Power System
· Equipped with large-bore cylinder + speed valve technology, delivering high-speed operation with low noise and vibration.
2. Enhanced Durability
· Jaw tips: Made of special forged steel for wear resistance and easy maintenance.
· Blades: Constructed from imported high-wear-resistant material to cut exposed rebar during concrete demolition.
3. Mechanical Rotation Design
· Features motor-free mechanical rotation, reducing weight and simplifying maintenance.
4. Compatibility & Performance
· Compatible with 18-22T excavators, operating at 31.5MPa pressure for building and infrastructure demolition.
5. Primary Applications
· Specialized in concrete structure demolition, including building dismantling and rebar cutting.

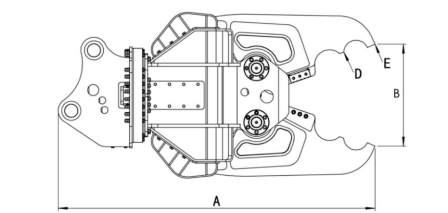

Model
Unit
TPC-180SF
TPC-250SF
Weight
Kg
1900
2530
Overall Height
A ( mm)
2445
2502
Opening Size
B ( mm)
800
1000
Blade Length ( Inner+Outer)
mm
160
160
Central Shearing Force
D ( KN)
790
1320
Front Shearing Force
E ( KN)
588
930
Working Pressure
Mpa
31 .5
31 .5
Suitable Excavator
Ton
18(Min)
20(Min)
