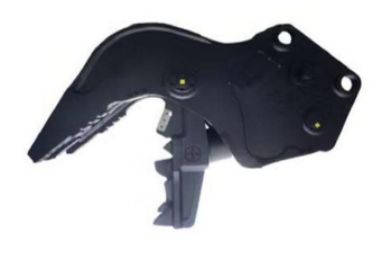

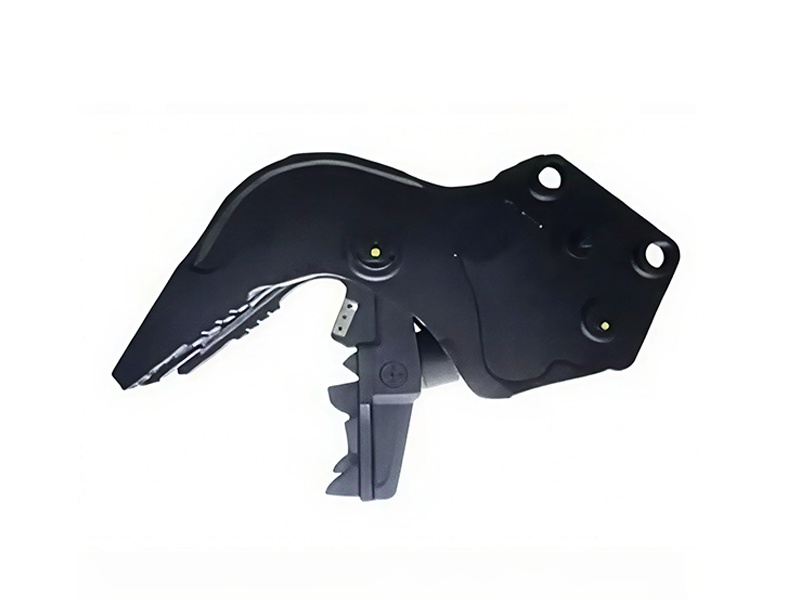

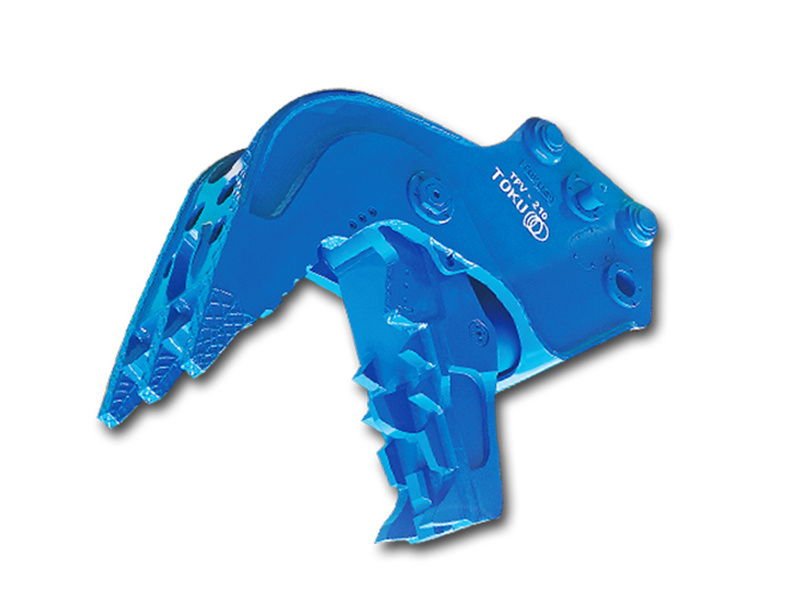

Concrete Crusher
Category:
Whatsapp:
E-mail:
Product Catalogue
DownloadDescriptions
-
1. High-Efficiency Crushing
· Equipped with dual-speed hydraulic system for fast cycle times (open/close in 2-3 seconds) while maintaining high crushing force.
2. Reinforced Structure
· Main frame: Fabricated with Q690 high-tensile steel plates
· Teeth: Tungsten carbide tips (optional) for extreme wear resistance
3. Smart Hydraulic Control
· Patented pressure compensation valve prevents overload damage
· Standard 360° continuous rotation (TPV-200R/TPV-300R models)
4. Material-Specific Jaws
· Interchangeable jaw sets for concrete (flat-type) or mixed debris (multi-point)
· 800-1200mm jaw opening range across models
5. Low Maintenance Design
· Centralized grease lubrication points
· Field-replaceable wear parts (no welding required)

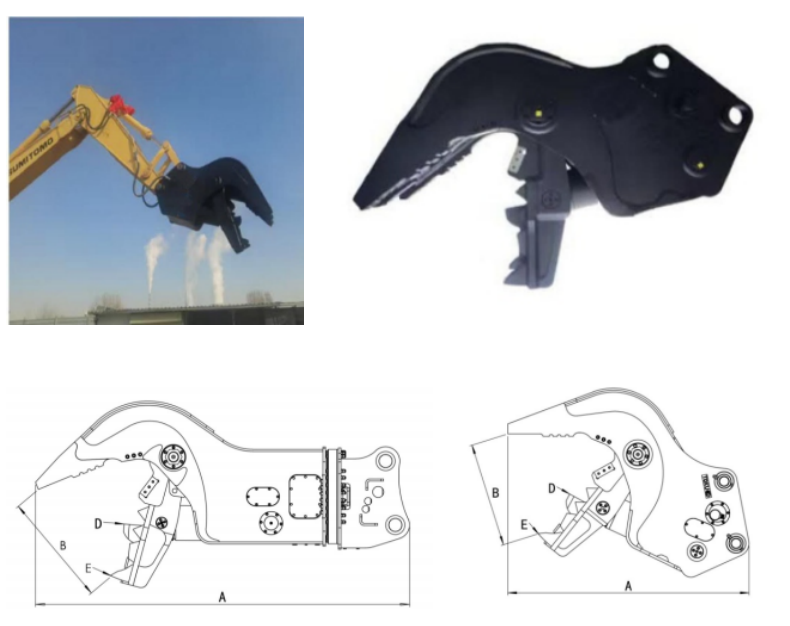

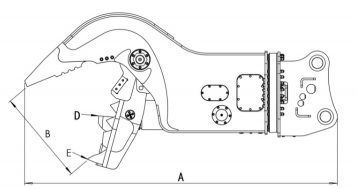

Model
Unit
TPV-200
TPV-200M
TPV-220
Weight
Kg
1600
1950
1860
Total Lengtht
mm
2027
2027
1925
Height
mm
1644
1644
-
Maximum Opening Width
mm
840
840
860
Blade Length
mm
150
150
160
Working Pressure
Mpa
31 .5
31 .5
31 .5
Suitable Excavator
Ton
20-22
20-22
20(Min)
Electromagnetic Suction Cup
×
×
