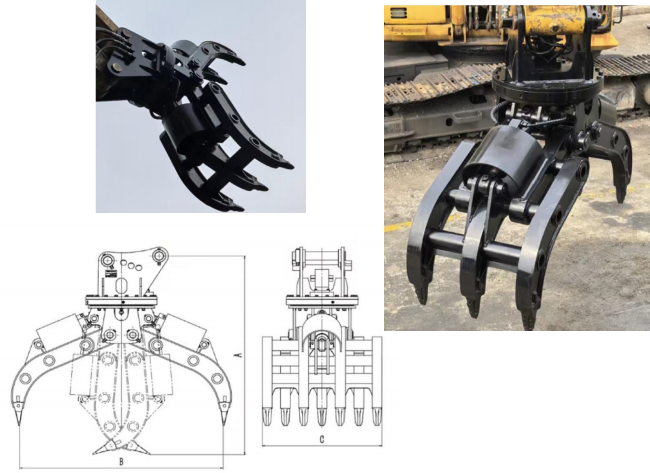

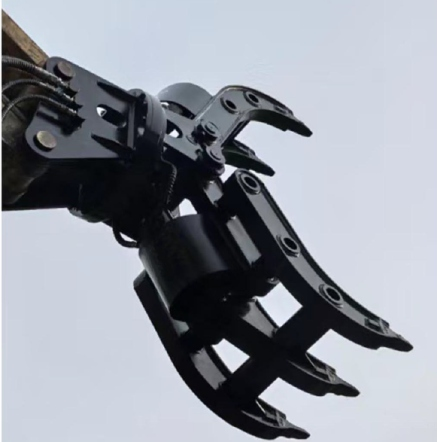

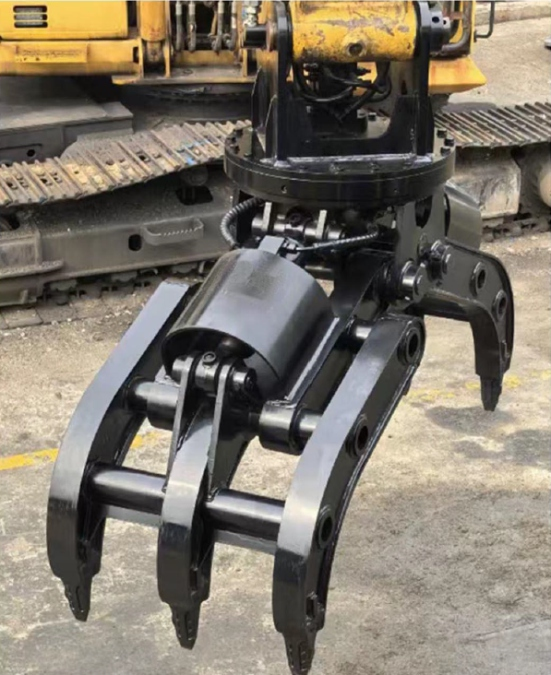

Hydraulic Grab
Category:
Whatsapp:
E-mail:
Product Catalogue
DownloadDescriptions
-
1. High-Efficiency Clamping
· Specially designed tines with reinforced tips for secure handling of steel scrap, bundled materials and loose debris
2. Heavy-Duty Construction
· Main frame built with high-strength steel (Q690 grade) for durability in harsh scrap yard environments
3. 360° Rotation System
· Full hydraulic rotation enables precise material positioning from any angle
4. Multi-Jaw Options
· Available in 2-jaw, 3-jaw and 4-jaw configurations
5. Quick-Change Compatibility
· Universal mounting plate fits most 20-30T excavators, allowing fast attachment changes
Model
Unit
TSF-
180SH
TSF-
190SH
TSF-
180DH
TSF-
190DH
Weight
Kg
1100
1310
1150
1240

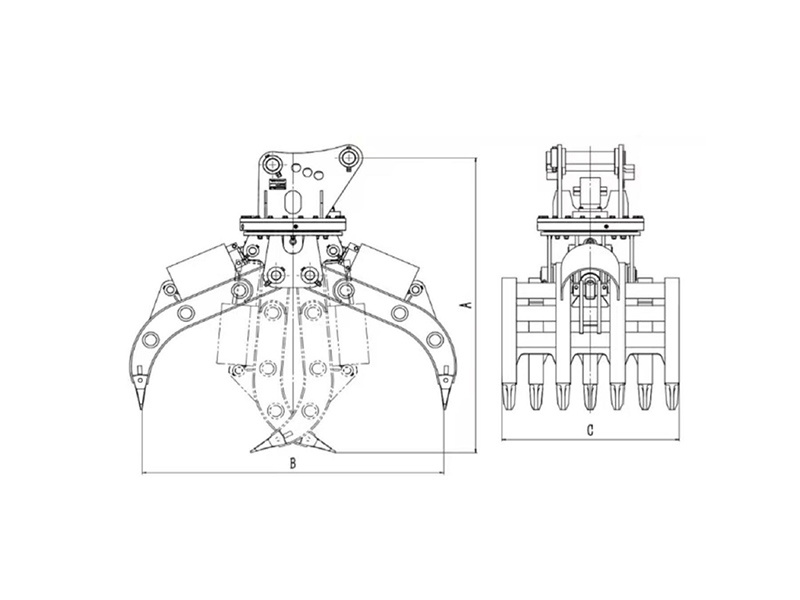

Overall Height
A ( mm)
2300
2300
1920
1920
Open Width
B ( mm)
2010
2010
1870
1870
Grab Width
C ( mm)
626
626
760
1095
Working Pressure
Mpa
25-31 .5
25-31 .5
25-31 .5
25-31 .5
Suitable Excavator
Ton
15-22
15-22
15-22
15-22
Fingers
2+3
3 +4
2-3
3-4
Hydraulic Cylinders
1
1
2
2
Motors
1
1
1
1
Hydraulic Grab
Category:
Whatsapp:
E-mail:
Descriptions
-
1. High-Efficiency Clamping
· Specially designed tines with reinforced tips for secure handling of steel scrap, bundled materials and loose debris
2. Heavy-Duty Construction
· Main frame built with high-strength steel (Q690 grade) for durability in harsh scrap yard environments
3. 360° Rotation System
· Full hydraulic rotation enables precise material positioning from any angle
4. Multi-Jaw Options
· Available in 2-jaw, 3-jaw and 4-jaw configurations
5. Quick-Change Compatibility
· Universal mounting plate fits most 20-30T excavators, allowing fast attachment changes
Model
Unit
TSF-
180SH
TSF-
190SH
TSF-
180DH
TSF-
190DH
Weight
Kg
1100
1310
1150
1240
Overall Height
A ( mm)
2300
2300
1920
1920
Open Width
B ( mm)
2010
2010
1870
1870
Grab Width
C ( mm)
626
626
760
1095
Working Pressure
Mpa
25-31 .5
25-31 .5
25-31 .5
25-31 .5
Suitable Excavator
Ton
15-22
15-22
15-22
15-22
Fingers
2+3
3 +4
2-3
3-4
Hydraulic Cylinders
1
1
2
2
Motors
1
1
1
1
