Descriptions

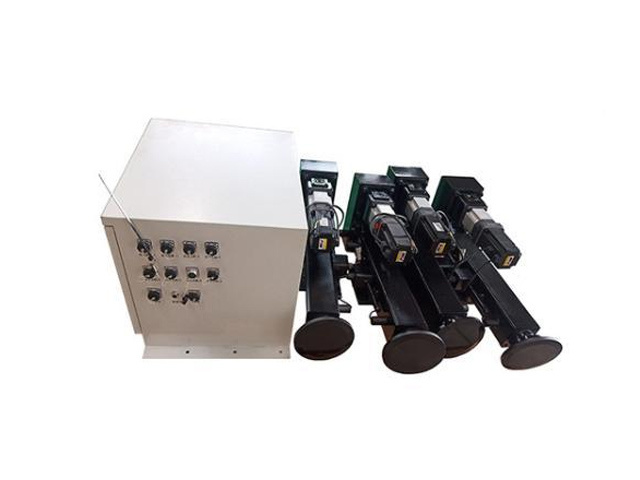

Components:
1.hydraulic cylinder legs or hydraulic motor legs,
2.master control box,
3.inclination sensor,
4.hydraulic pump station,
5.high-pressure oil pipe accessories,
6.finished aviation plug wire accessories, etc.
Technical Specifications and Performance of Hydraulic Leveling Systems:
1. System Voltage: DC 12V/24V/48V/320V/600V, AC 220V/380V (custom export voltage systems available);
2. System Power: 200W–100kW;
3. Operating Temperature: Civilian models: -25°C to +50°C / Military models: -40°C to +65°C;
4. Relative Humidity: ≤90%;
5. Leveling Accuracy: 0.5°–0.01°;
6. Single-Leg Load Capacity: 2,000 kg–100,000 kg;
7. Effective stroke: 450 mm (customizable);
8. Control mode: Supports manual and automatic;
9. Number of leveling legs supported: 4 legs/6 legs (customizable to include 2-leg, 3-leg, 8-leg, 16-leg, and other leveling systems);
10. Remote control range: 50 m (optional);
11. Protection functions: Overload protection, limit switch protection;
12. Basic functions: Automatic leveling, automatic retraction, automatic detection of loose legs, emergency retraction, and support for group retraction, group extension, individual retraction, and individual extension;
13. Military-grade products meet various national military standards for environmental requirements, electromagnetic compatibility, and the “Six Characteristics” requirements, and feature three-proof (waterproof, dustproof, and shockproof) capabilities;
14. Customization available.
