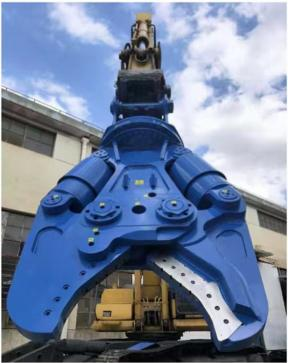

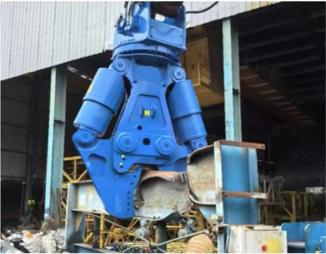

Double Cylinder Steel Structure Shear
Category:
Whatsapp:
E-mail:
Descriptions
-
Model
Unit
TSC-165DH
TSC-225 DH
Weight
Kg
1680
2250

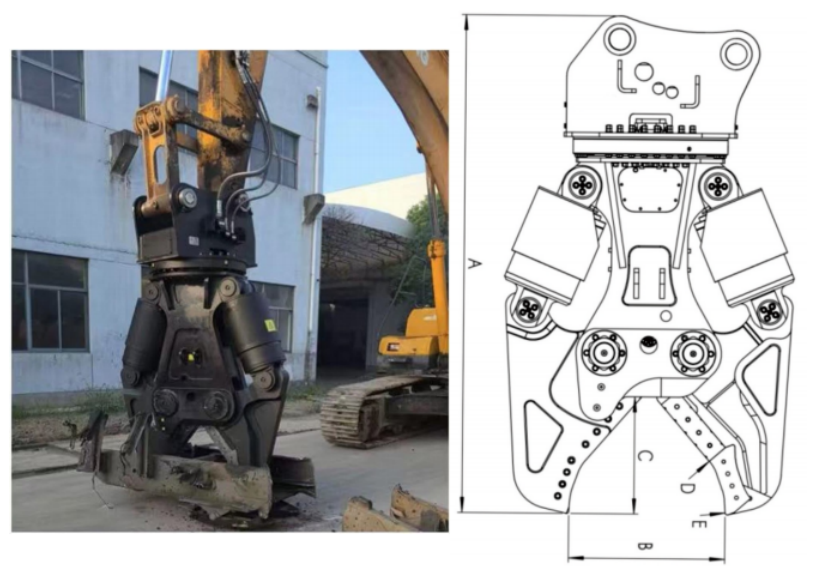

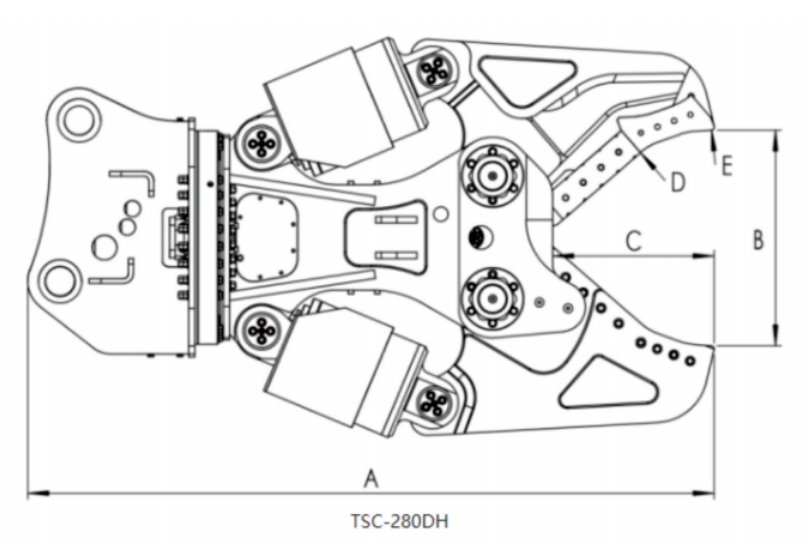

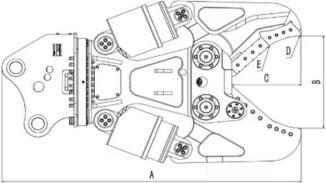

Overall Height
A ( mm)
2049
2260
Opening Size
B ( mm)
665
660
Cutting Depth
C ( mm)
435
480
Blade Length
( Inner+Outer)
mm
290+200
300+230
Central Shearing Force
D ( KN)
1140
1410
Front Shearing Force
E ( KN)
820
950
Working Pressure
Mpa
31 .5
31 .5
Suitable Excavator
Ton
13(Min)
16(Min)
Model
Unit
TSC-245 DH
Weight
Kg
2550
Overall Height
A ( mm)
2270
Opening Size
B ( mm)
770
Cutting Depth
C ( mm)
550
Blade Length
( Inner+Outer)
mm
350+260
Central Shearing Force
D ( KN)
1550
Front Shearing Force
E ( KN)
1050
Working Pressure
Mpa
31 .5
Suitable Excavator
Ton
22( Min)
Model
Unit
TSC-285DH PLUS
Weight
Kg
2920
Overall Height
A ( mm)
2345
Opening Size
B ( mm)
740
Cutting Depth
C ( mm)
550
Blade Length
( Inner+Outer)
mm
350+260
Central Shearing Force
D ( KN)
1640
Front Shearing Force
E ( KN)
1205
Working Pressure
Mpa
31 .5
Suitable Excavator
Ton
22( Min)
Model
Unit
TSC-305DH
TSC-375 DH
Weight
Kg
3050
3730
Overall Height
A ( mm)
2440
2650
Opening Size
B ( mm)
740
790
Cutting Depth
C ( mm)
550
620
Blade Length
( Inner+Outer)
mm
350+260
350+330
Central Shearing Force
D ( KN)
1820
2485
Front Shearing Force
E ( KN)
1250
1445
Working Pressure
Mpa
31 .5
31 .5
Suitable Excavator
Ton
24( Min)
30(Min)
Model
Unit
TSC-400DH
TSC-485DH
Weight
Kg
4020
4985
Overall Height
A ( mm)
2725
3005
Opening Size
B ( mm)
820
870
Cutting Depth
C ( mm)
635
730
Blade Length
( Inner+Outer)
mm
370 +330
380+400
Central Shearing Force
D ( KN)
2495
2620
Front Shearing Force
E ( KN)
1500
1590
Working Pressure
Mpa
31 .5
31 .5
Suitable Excavator
Ton
33(Min)
45(Min)
